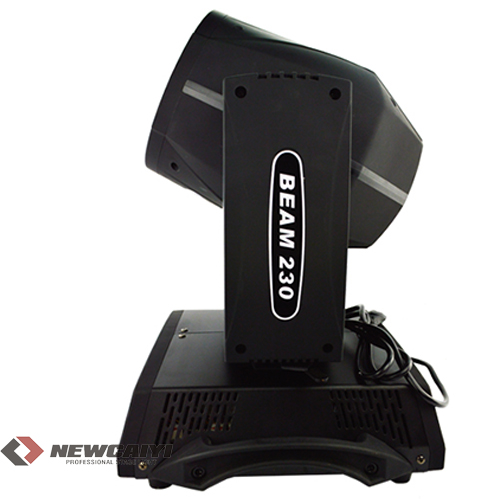

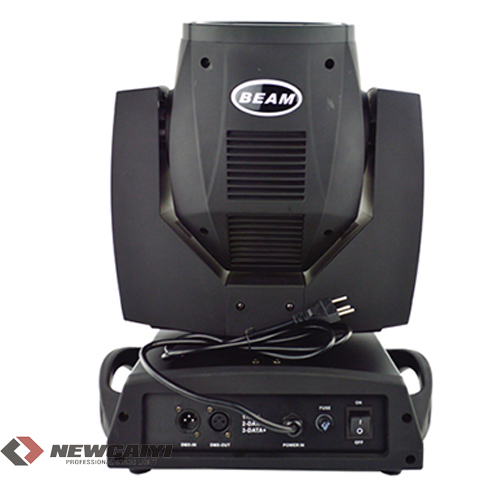

230W Sharpy Beam led moving head light

1. Input voltage:AC 100-240V, 50-60Hz
2. Power consumption: 450W
3. Light source: OSRAM SIRIUS HRI 230W(7R)
4. Channel: 16CH
5. Beam angle:0-3.8°, Parallel Beam
6. Pan:540 degree; Tilt:270 degree
7. Control model: auto,dmx512,master/ slave,sound active
8. Dimension:460*420*550mm
9. Net weight: 15.7kg
10. Gross weight: 18kg


Details
To purchase this product, please Mail to us or call +86-2036041618

1. Color: 14 color+blank color wheel, rainbow effect
2. Gobo: 17 fixed gobo+blank gobo
3. Prism: rotation 16-face prism, bilateral rotation.
4. Beam effect could stretch and close
5. Lens: high precision optical lens
6. Wash effect: adjustable wash effects angle
7. Focus: linear adjustment
8. Strobe: double lens strobe(0.5-9 times/second)
9. Dimmer: 0-100% linear adjustment
10. X axis 540 degree, Y axis 250 degree automatically accurate positioning
11. Beam angle: parallel beam angel 0-3.8 degree
12. Motor: mute sound motor
13. Control mode: Standard DMX512, auto run and master/salve, sound active
14. Features: Remote control lamp’s switch function, display light and lamp’s using time, automatically adjust
cooling-fan’s speed
15. Structure: heat-proof plastic+module pressing alloy materials
